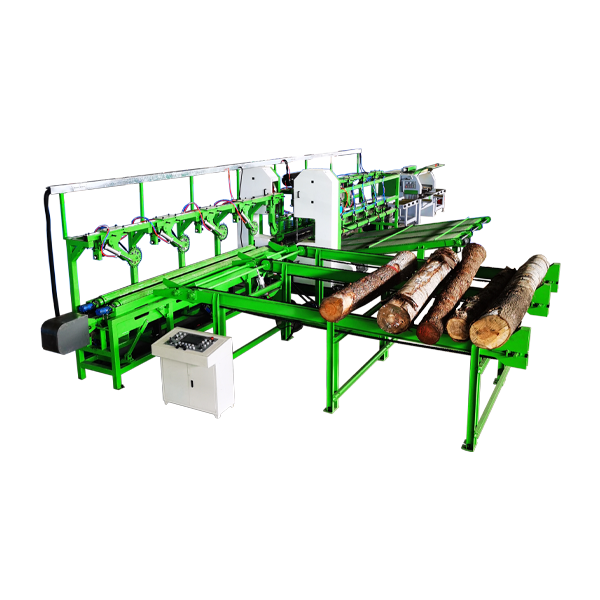

The smart log processing sawmill system is the newest design which can use in the forest or farm and DIY woodworking place. Twin vertical bandsaw machine remove two side of logs at same time. Cost-effective, versatile, designed for high performance, and built strong for long working life reliable service.
The twin vertical sawmill line combine with automatic log loading deck, vertical bandsaw, log turning conveyor, input and output chain system, side slab conveyor etc, touch screen control easy operation.
It is suitable for the scale production of sawmill and is widely used in wood processing in the original forest area.
Log turning system with hydraulic power turning roller, this machine use for turning log to suitable cutting angle, the length of machine can custom made as your log specification.
Twin vertical band saw machine, precision cutting double side of round log at same time, saw wheel diameter 800mm, saw blade width 3inch, the distance between blade is adjustable.
Automatic band saw blade tension system, high working efficiency, easy operation.
Slop chain conveyor will take out the side slabs after cutting by twin vertical saw machine, labour cost saving.
Laser measurement will help operator check which place the saw blade will cut.
Touch screen with PLC control system, all sawmill line function can be control in this panel, in this program you can setting many different cutting size, or adjust cutting speed, electric parts brand is optional.
Wood centering system, make sure wood in center of roller conveyor before into next cutting process.
Custom Made Sawmill Line | |||
Model | YVT300 | YVT500 | YVT600 |
Max sawing diameter | 120-300MM | 150-500MM | 250-600MM |
Max sawing length (Custom made) | 1.5-4m (standard) | 1.5-4m (standard) | 1.5-4m (standard) |
Saw wheel diameter | 710mm | 800mm | 1000mm |
Saw blade width | 75mm | 100mm | 125mm |
Blade tension | Automatic | Automatic | Automatic |
Saw power | 18.5kw*2 | 18.5kw*2 or 22kw*2 | 22kw*2 or 30kw*2 |
Conveyor motor | 5.5kw | 7.5kw | 11kw |
Width adjustment | Automatic | Automatic | Automatic |
Cutting speed | 5-15m/min | 5-20m/min | 5-20m/min |
Control | Touch screen | Touch screen | Touch screen |
Cutting speed | Adjustable (Frequency converter) | ||
Voltage | 380V/50Hz/3Phase | ||
Weight | 7500kg | 9500kg | 12500kg |
1. Raw Materials Cutting
2. Plasma Cutting
3. Welding
4. Boring Machine
5. CNC Machining Precess
6. Painting Spray
7. Band Saw Install
8. Finished Saw Carriage
9. Finished Band Saw
Xingtai YSDMILL Machinery Manufacturing Co., Ltd is located in Xingtai city, Hebei province China. Since it has been established nearly three decades, our company has become a professional woodworking machinery manufacturer that integrated the research, development, production, sales and after - sales service as one.
Meanwhile, YSDMILL has been a well known sawmill machinery manufacture at home and abroad. Our woodworking band-sawing machine and woodworking log carriage rank at the top position in the domestic sales industry.
Q: Are you a trading company or a manufacturer?
A: We are manufacturer.
Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.
Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.
Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.
Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.
Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.
